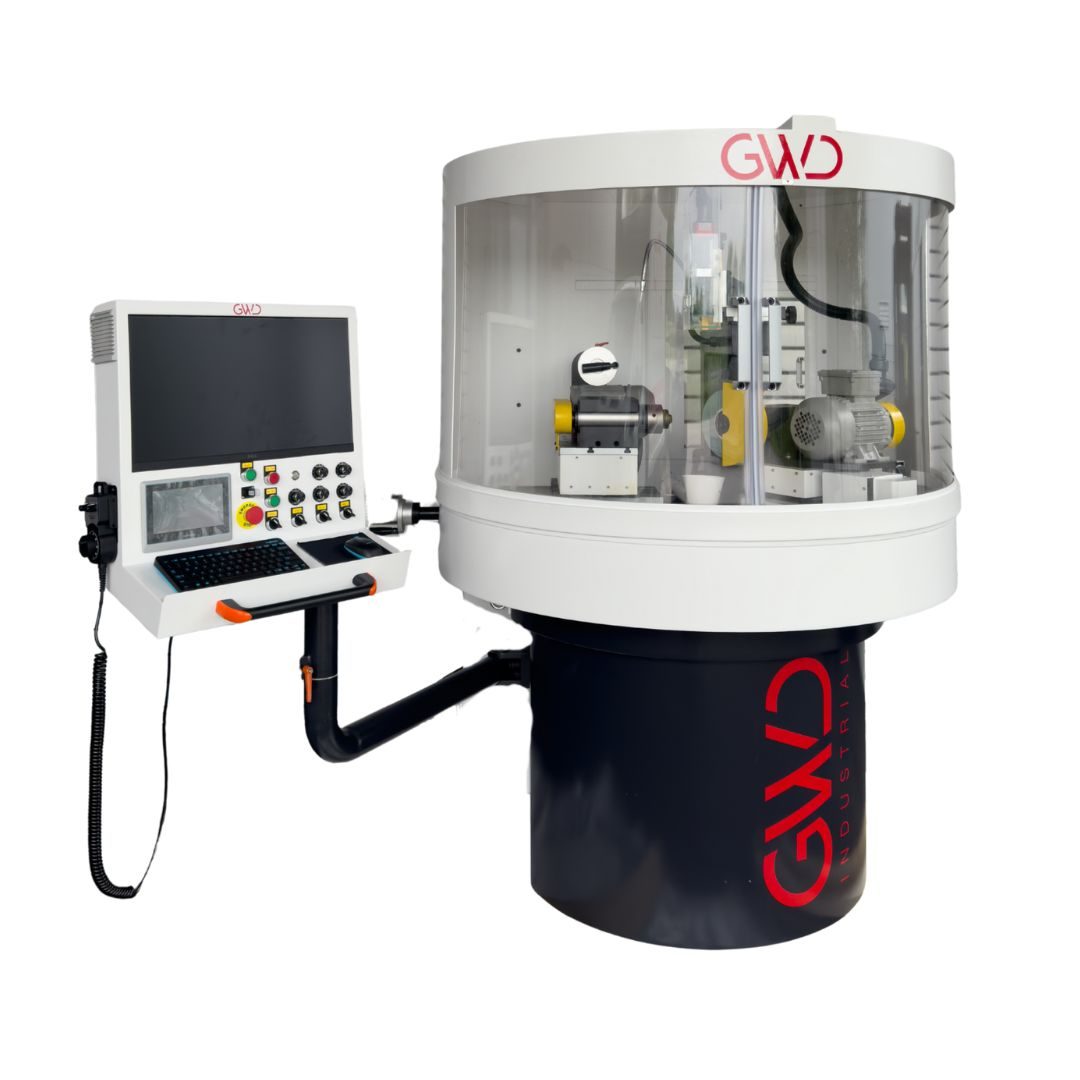

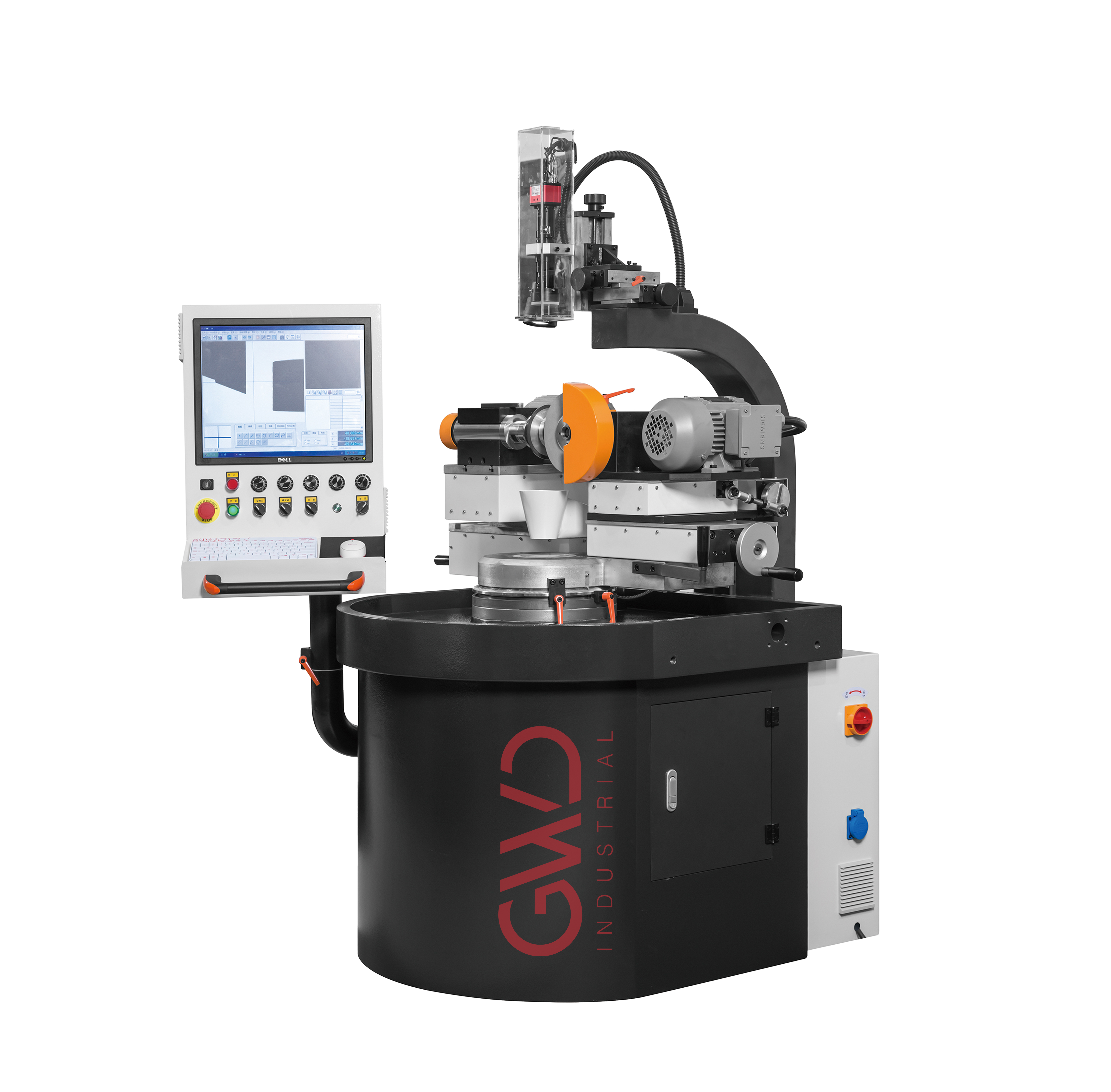

GWDress Abrichtmaschine für Schleifscheiben

Technical data

General

Adapter/connectors HSK 50 or customer request
max. grinding wheel diameter ø 250 mm
max. dressing wheel diameter ø 300 mm
Grinding wheel speed 0-1500 rpm (stepless adjustable)
Dressing wheel speed 0-2800 rpm (stepless adjustable)

Movement range of axes

max. travel path left/right 135 mm
max. travel path back/forward 135 mm

Dressing

Oscillation speed 0-50 rpm
Swing length dressing wheel 0-50 mm
Optical scale device (X, Y and rotary axis) 0,001 mm

Machine data

Electrical connection 380 V or other on request
Total power 1,5 kW
Dimensions ca. L 1200 x W 1200 x H 1900 mm
Weight incl. cast iron machine bed 1.400 kg

Software

EDIS Measuring Open Source Software
DXF-Import possible
Draw shapes in software possible
Camera optics and magnification included
19" Monitor  included

Further facts

Radius dressing possible
Dressing wheel packs possible
